Onda Atlántica footbridge in Las Palmas de Gran Canaria
Onda Arquitectura  Checa Arquitectura

Onda Atlántica footbridge in Las Palmas de Gran Canaria

Onda Arquitectura  Checa Arquitectura

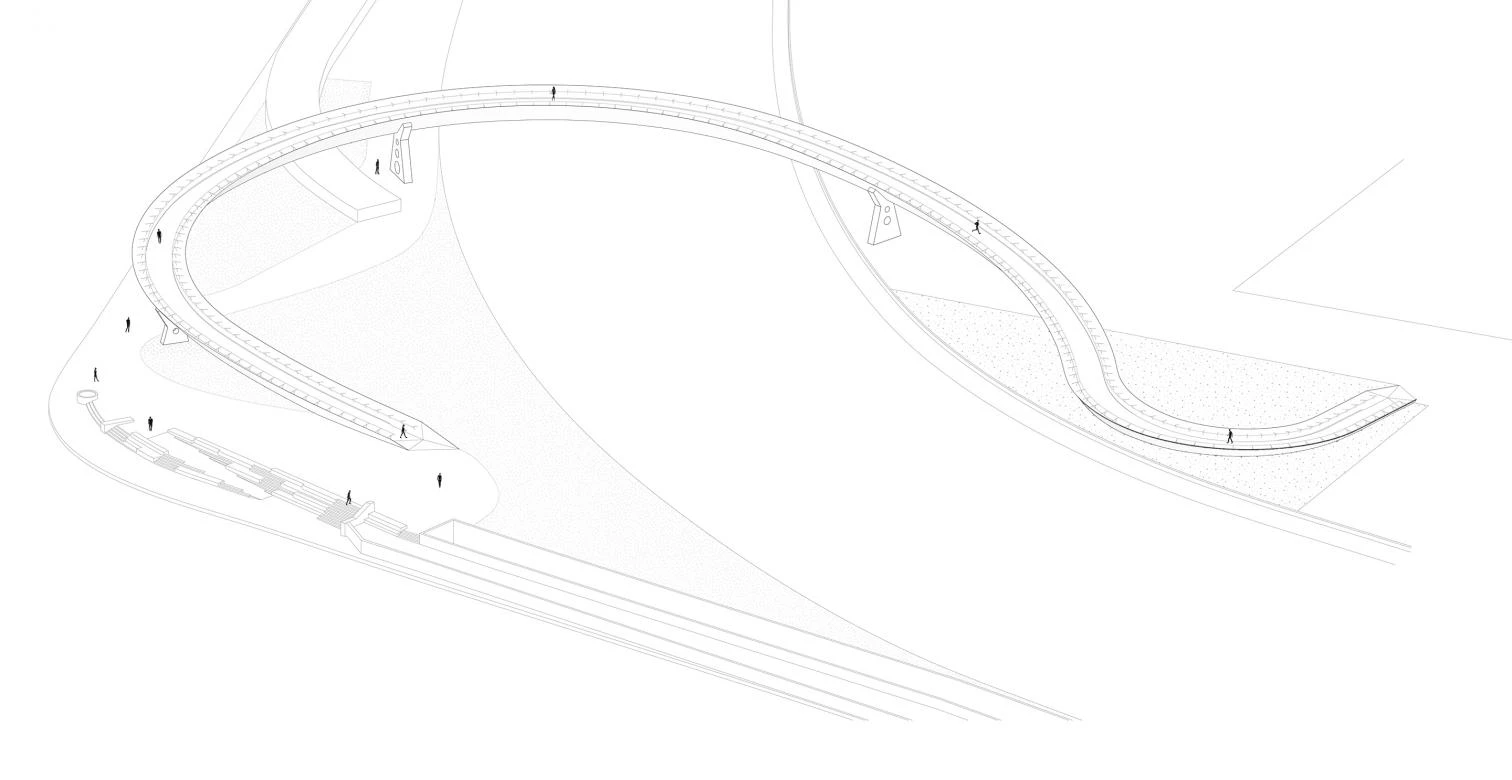

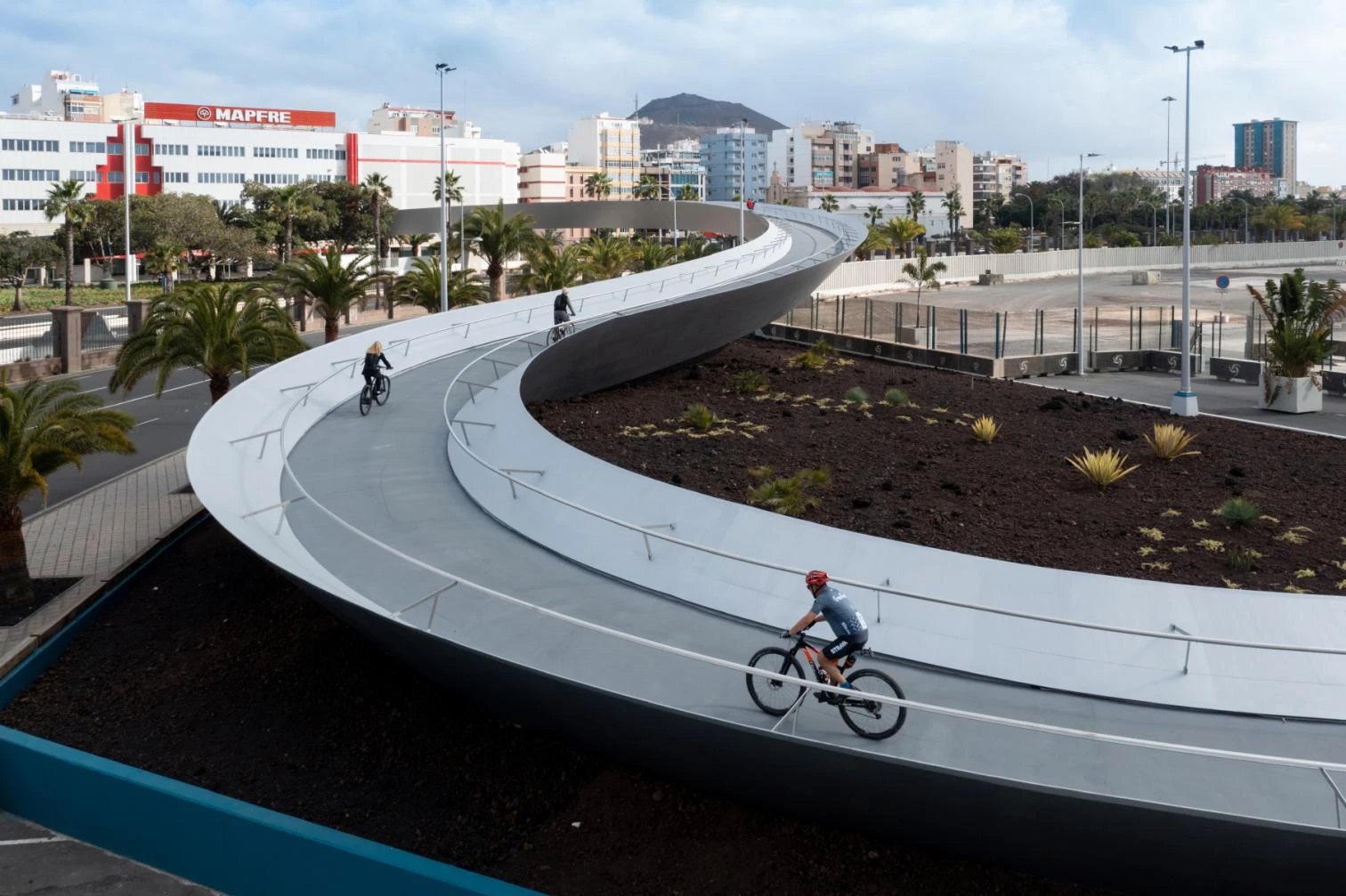

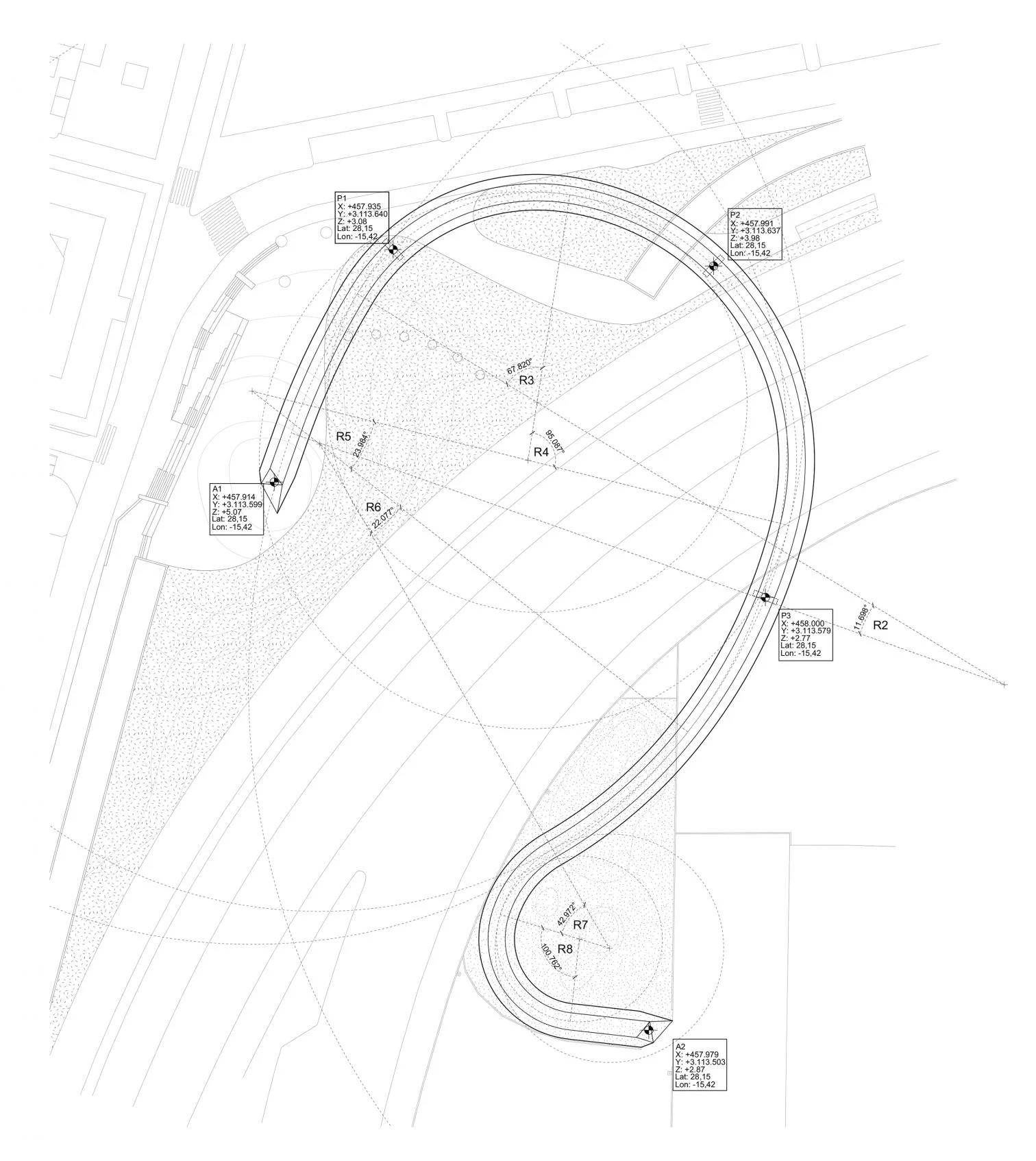

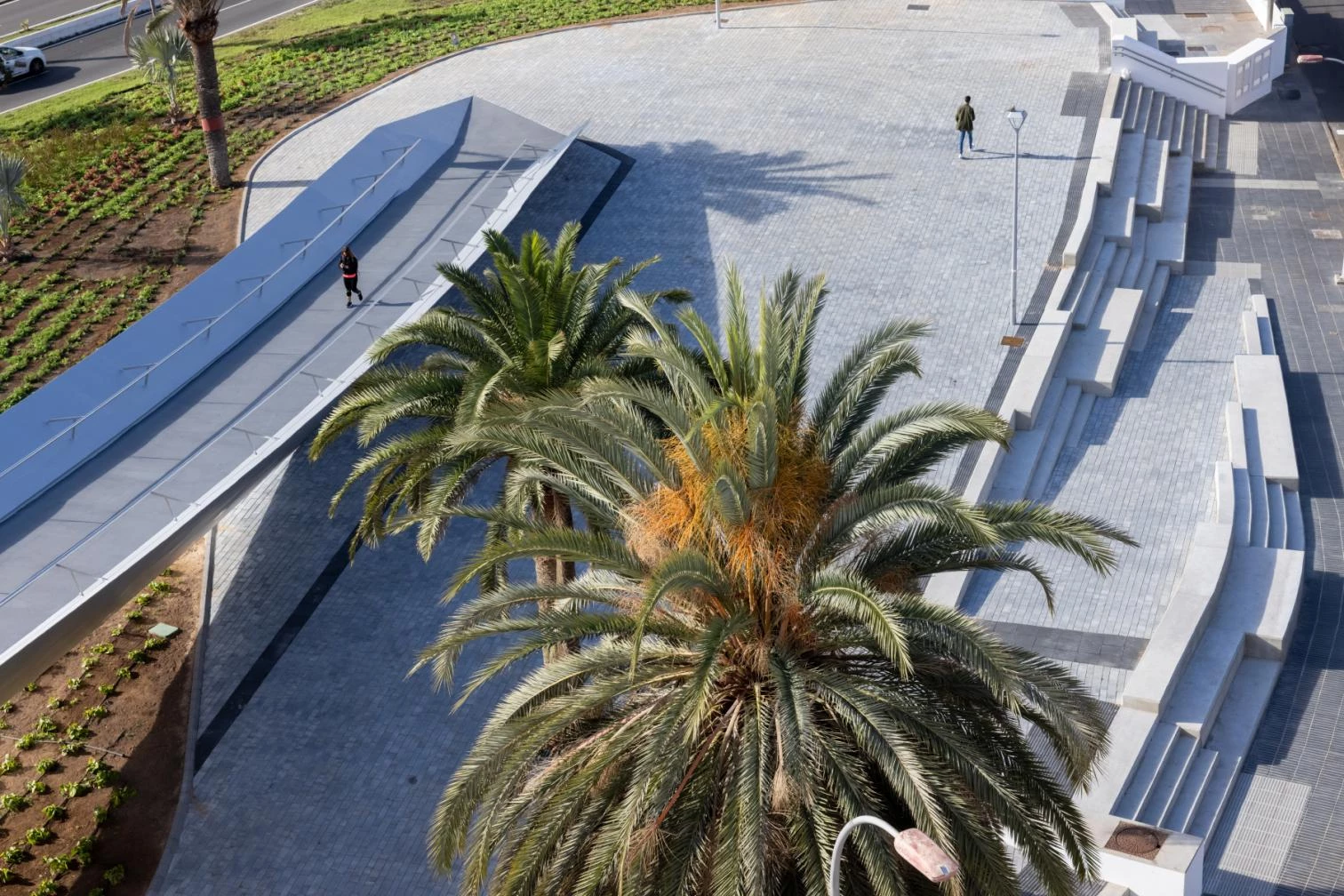

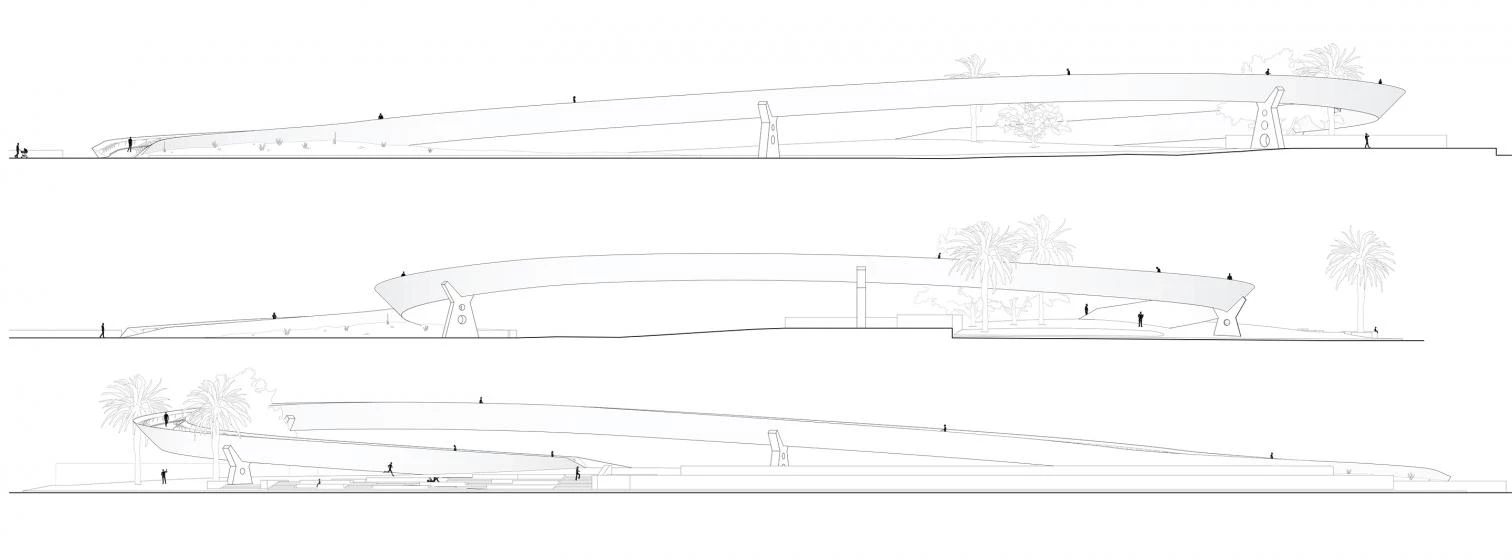

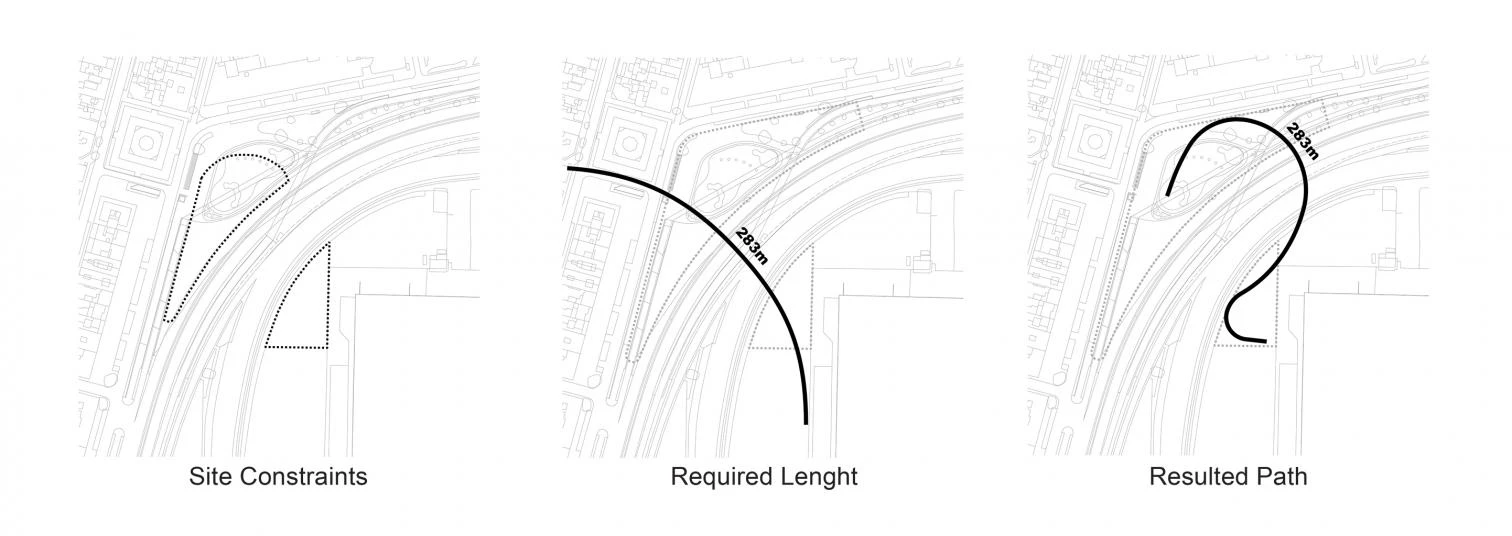

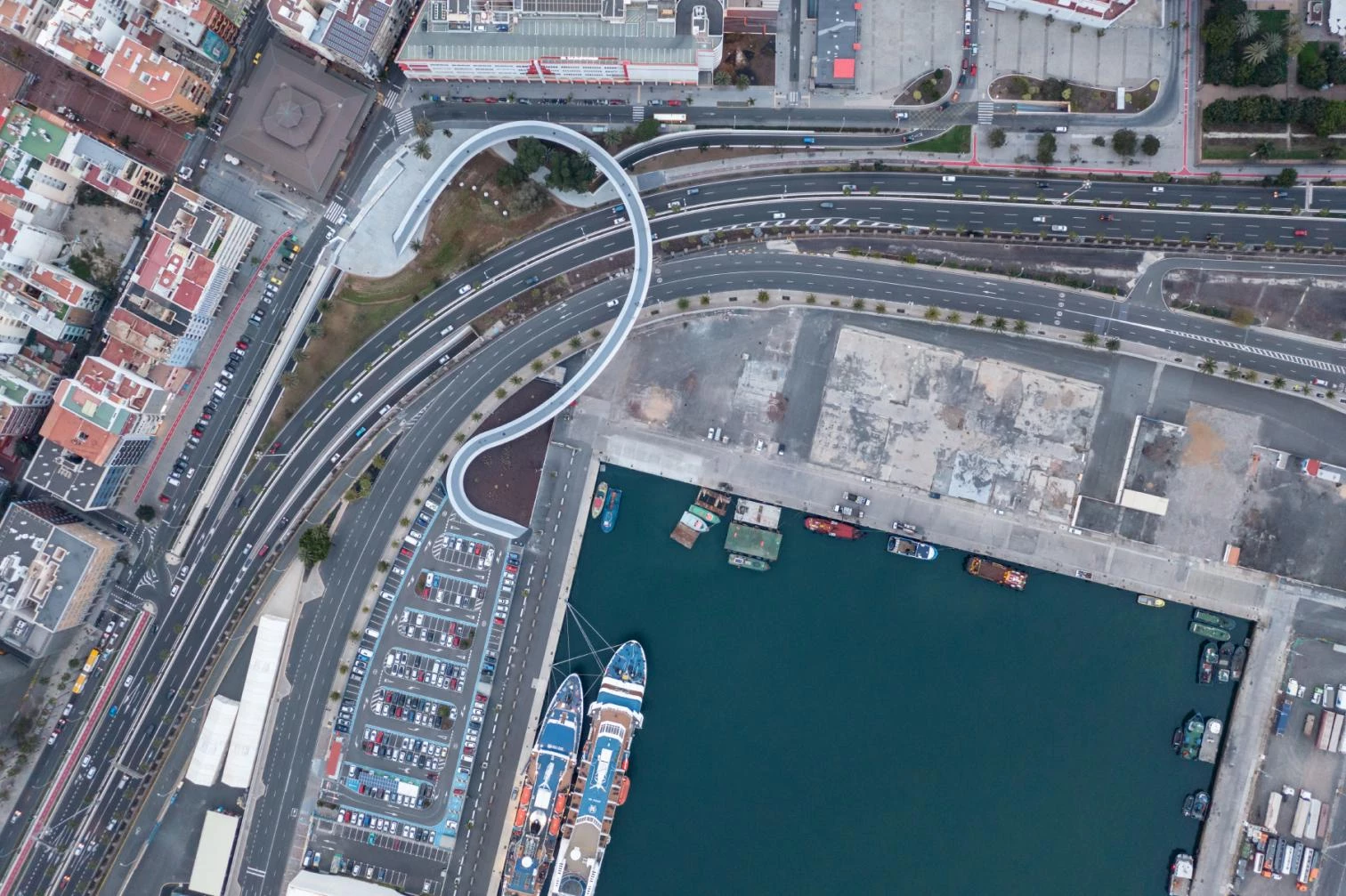

With a total length of 283 meters, the footbridge designed by Onda Arquitectura and Checa Arquitectura presents three 63-meter stretches between supports, and the effect is an unexpected impression of lightness. The wavy form, initially a response to the limitations of the site, dodges the preexisting trees while improving the structure’s performance by allowing a design without expansion joints. With a width of 3 meters and a maximum slope of 6%, the bridge reaches a maximum altitude of 7.6 meters above street level, so is a new lookout for viewing the city.

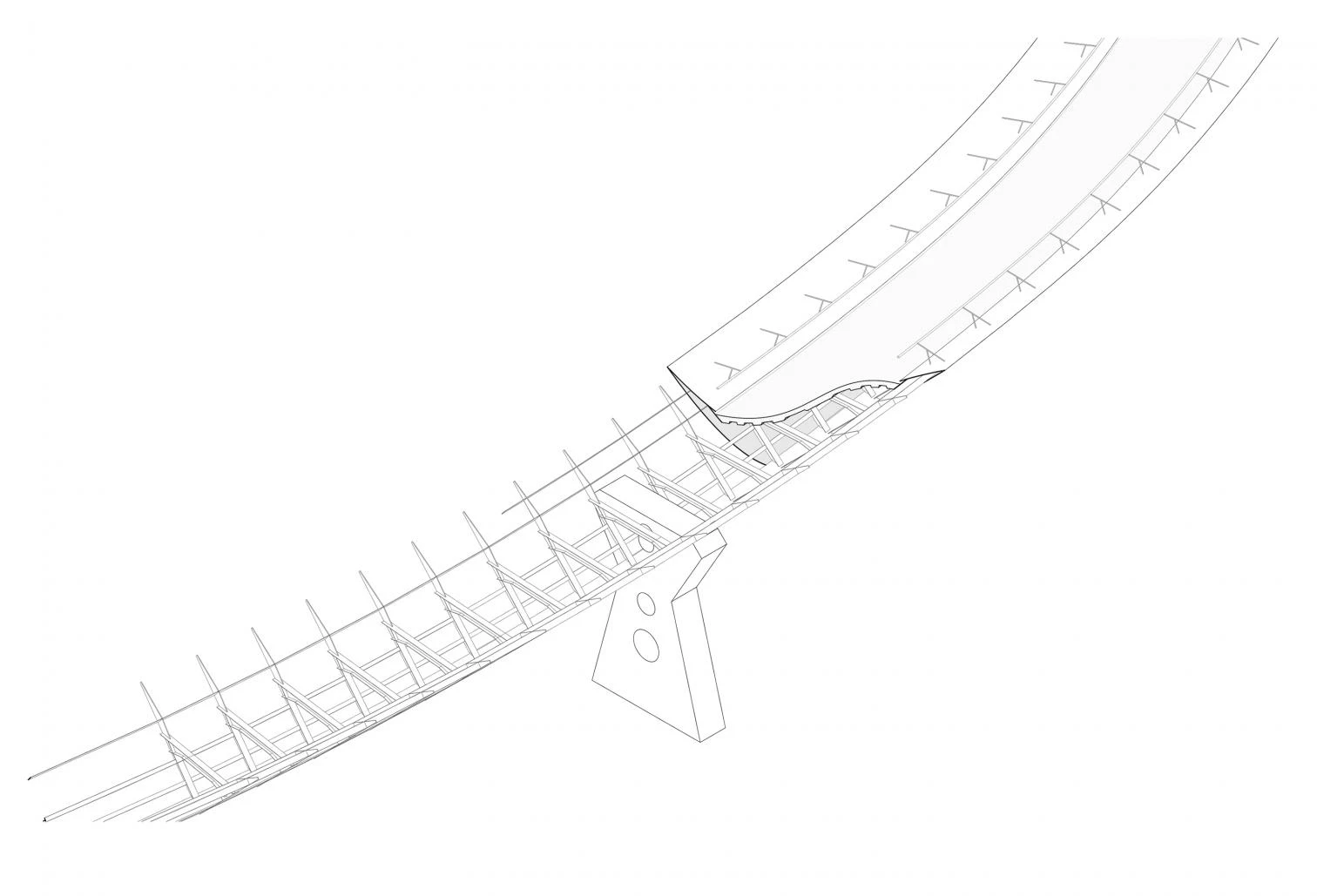

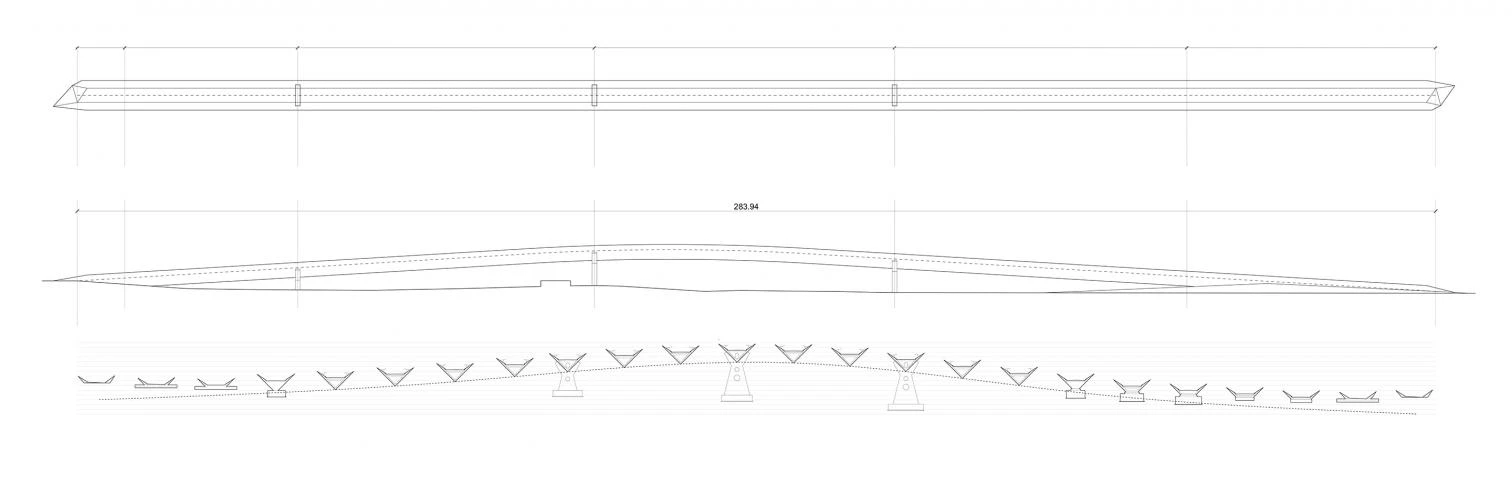

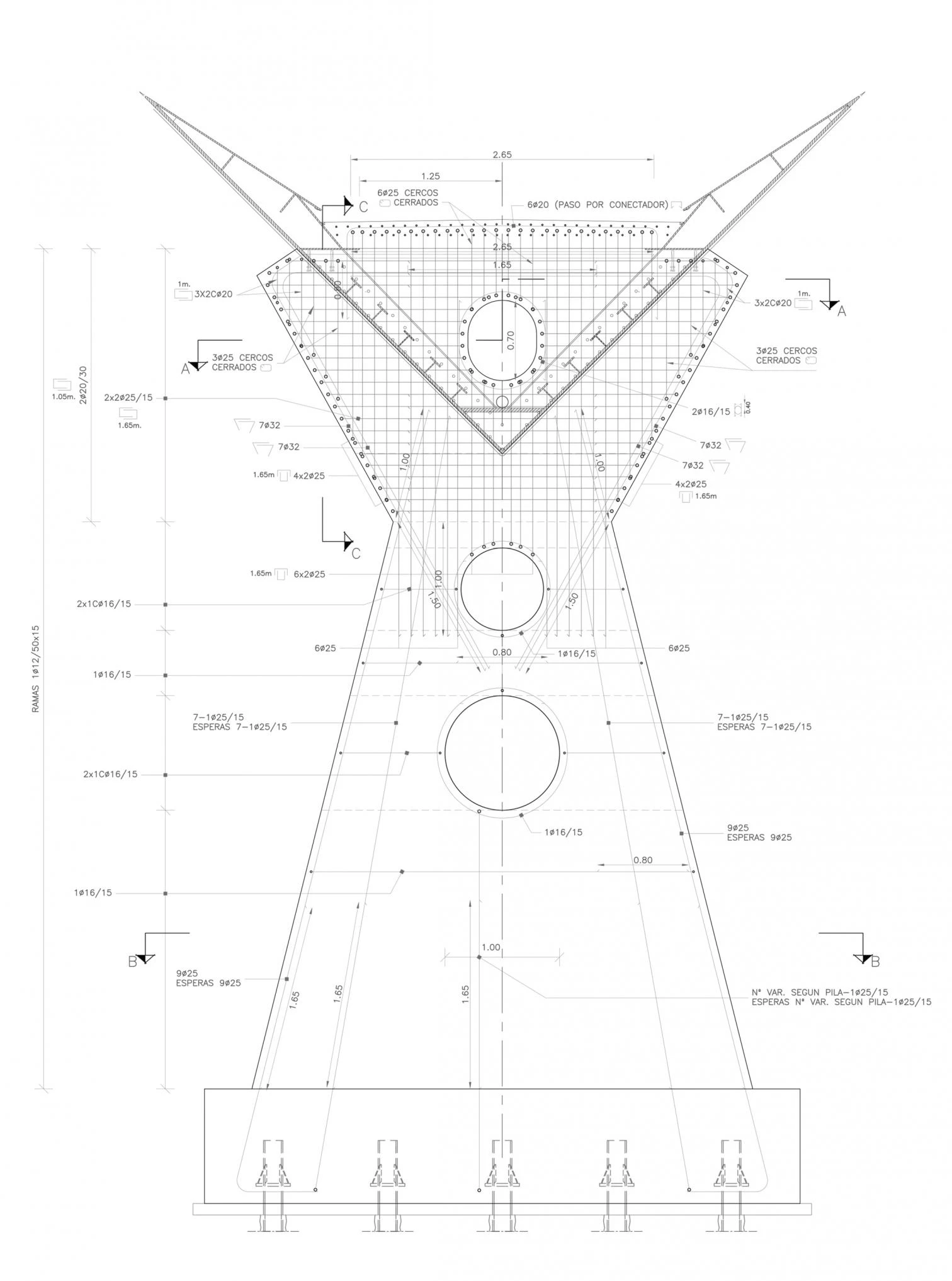

The V-shaped profile resulted from the need to mitigate the acoustic impact of the road below, giving rise to an innovative structural system; a highly efficient triangular profile, uncommon in the world of bridge engineering, that can connect curved spans. The programmatic requirements for pedestrians, cyclists, and accessible crossings are all met with a single infrastructure.

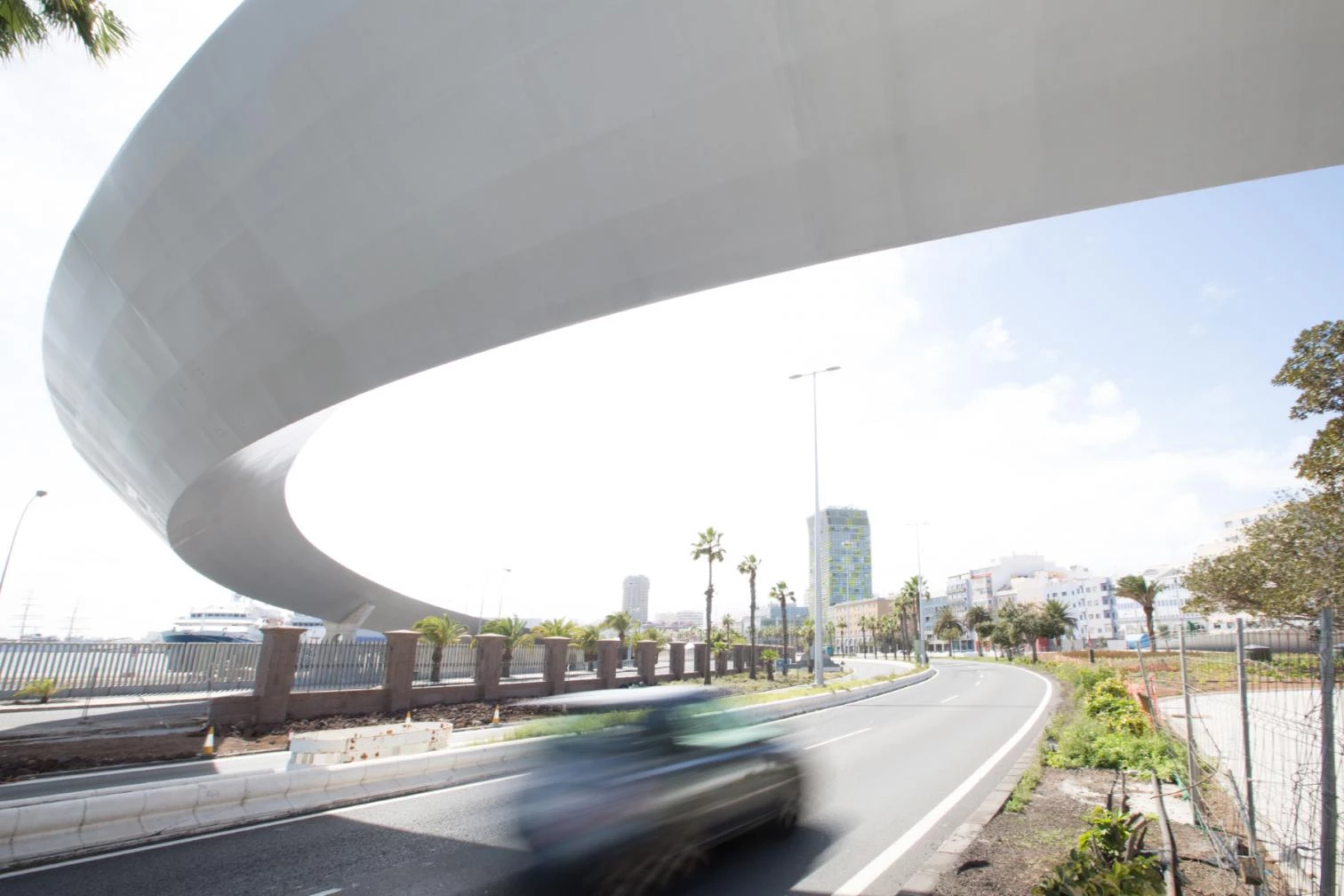

Foto: Javier Haddad

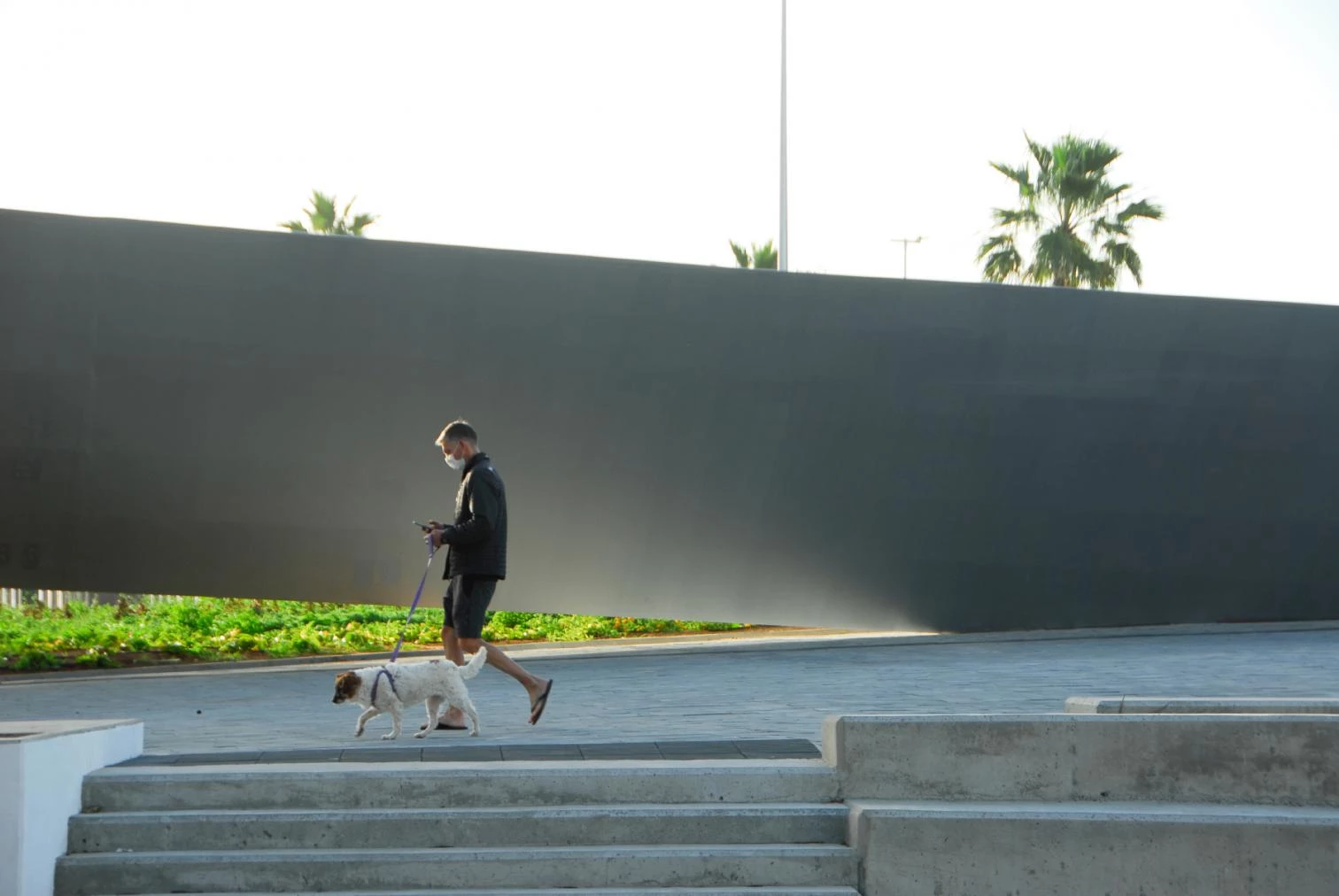

Foto: Javier Haddad

Foto: Javier Haddad

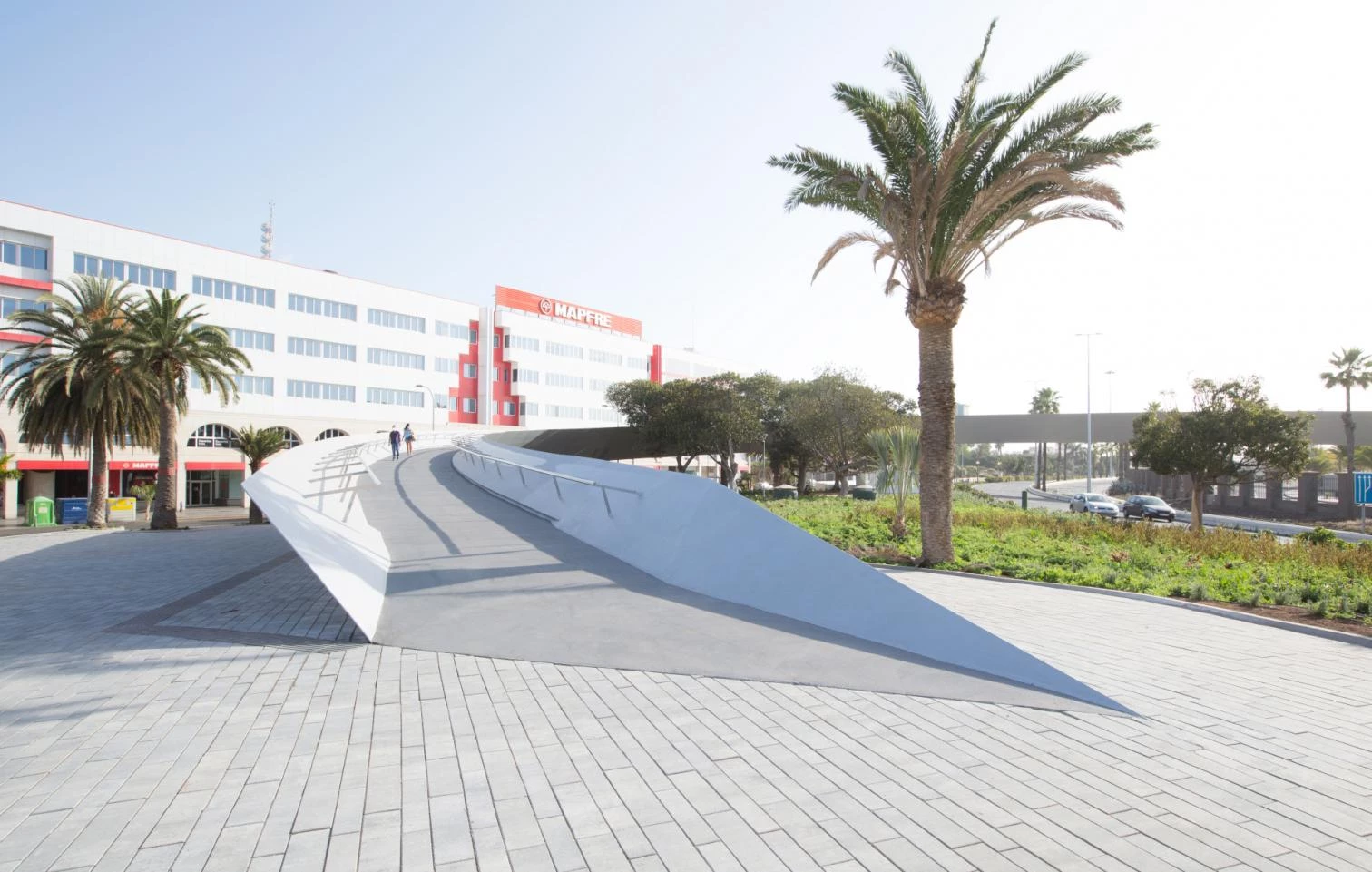

Foto: Javier Haddad

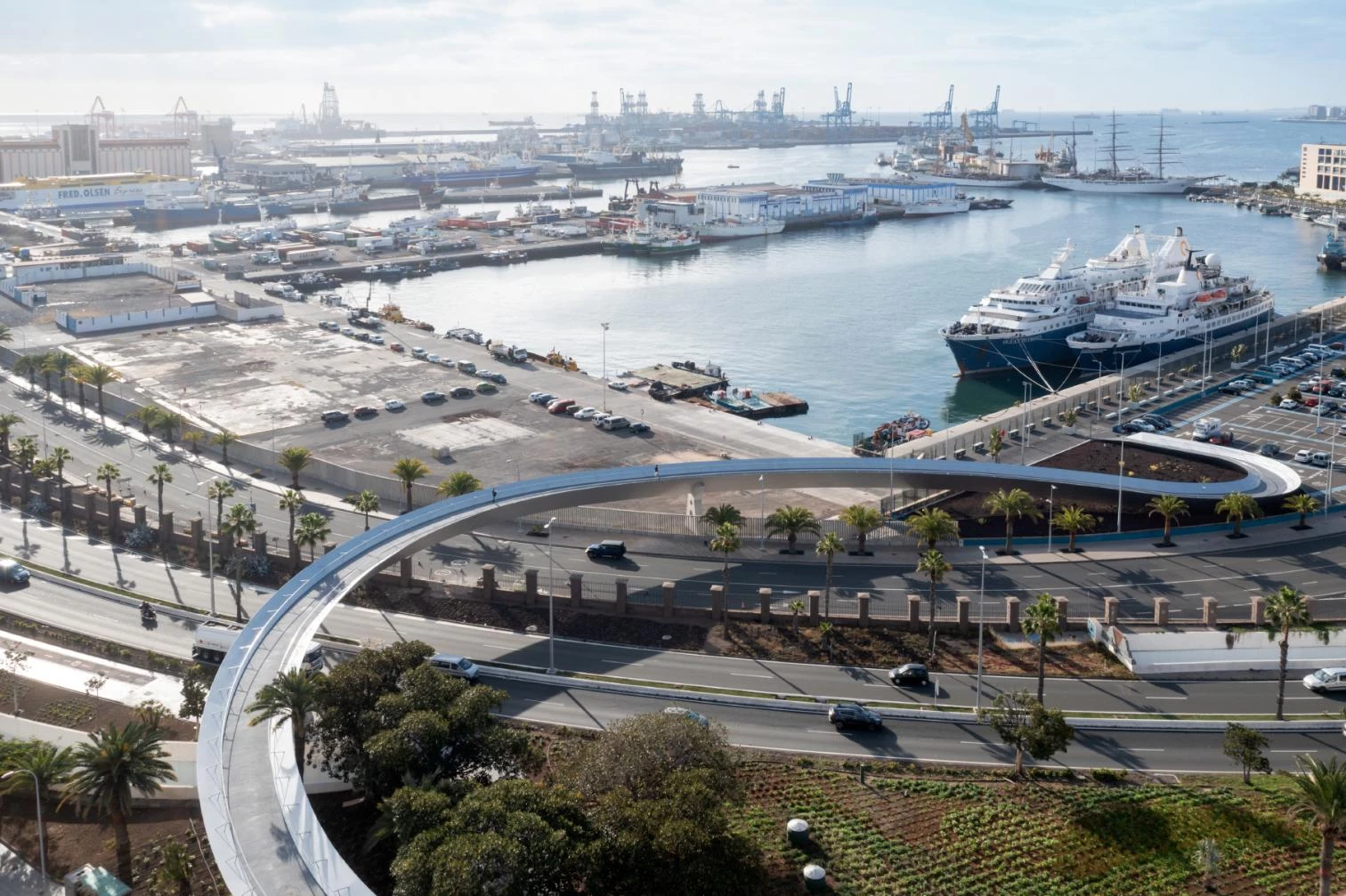

Foto: Javier Haddad
